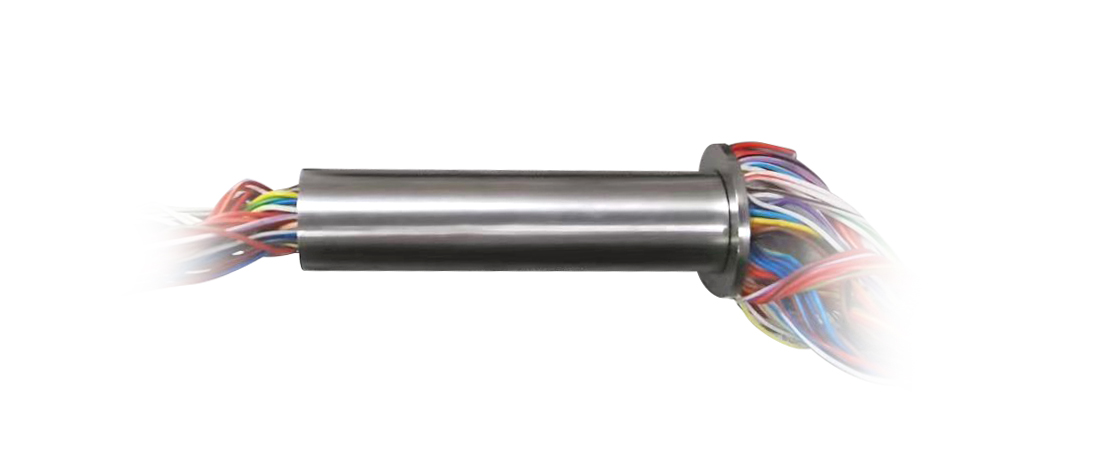

ADSR-JK17-80 Defense Miniature Slip Ring Capsule
ADSR-JK17-80 defense miniature slip ring capsule is designed for airborne camera platforms, inertial navigation systems and other defense high precision systems. It provides 80 ways 1A packaged in an envelope of 17.4mm diameter and 50.8mm length, with the advantages of less than 10mΩ electrical noise and up to 10 Millions revolutions lifetime. All components are processed according to military standards. High reliability and meets military vibration and shock requirements.
Features
■ 80 ways 1A
■ 17.4mm diameter and 50.8mm length
■ Up to 300 rpm operation
■ Max 10mΩ electrical noise
■ 10 Million revolutions lifetime
■ Precise, tight packaging capabilities for meeting stringent design criteria
■ High reliability, meets military shock and vibration requirements
Typical Applications
■ Gimballed pitch, roll and yaw axes of inertial navigation systems
■ Airborne camera platforms
■ Unmanned aerial vehicles(UAV)
Specification
| Electrical | Material | ||
| Circuits | 80 | Contact Material | Gold on gold |
| Rating Voltage / Current | 48VDC / 1A | Lead Wires | 450mm AWG #30 wires |
| Insulation Resistance | ≥250MΩ / 500VDC | Housing | aluminium alloy |
| Electric Noise | ≤20m Ω | Environmental | |
| Dielectric Strength | 200VAC / 50Hz / 60s | Working Temperature | -40 ℃～+80℃ |
| Mechanical | Storage Temperature | -45 ℃～+85℃ | |
| Operating Speed | 300 rpm | Humidity | 95% RH |
| Torque | <0.2 N.cm | Protection | IP54 |
| Life | 10 Million revolutions | ||

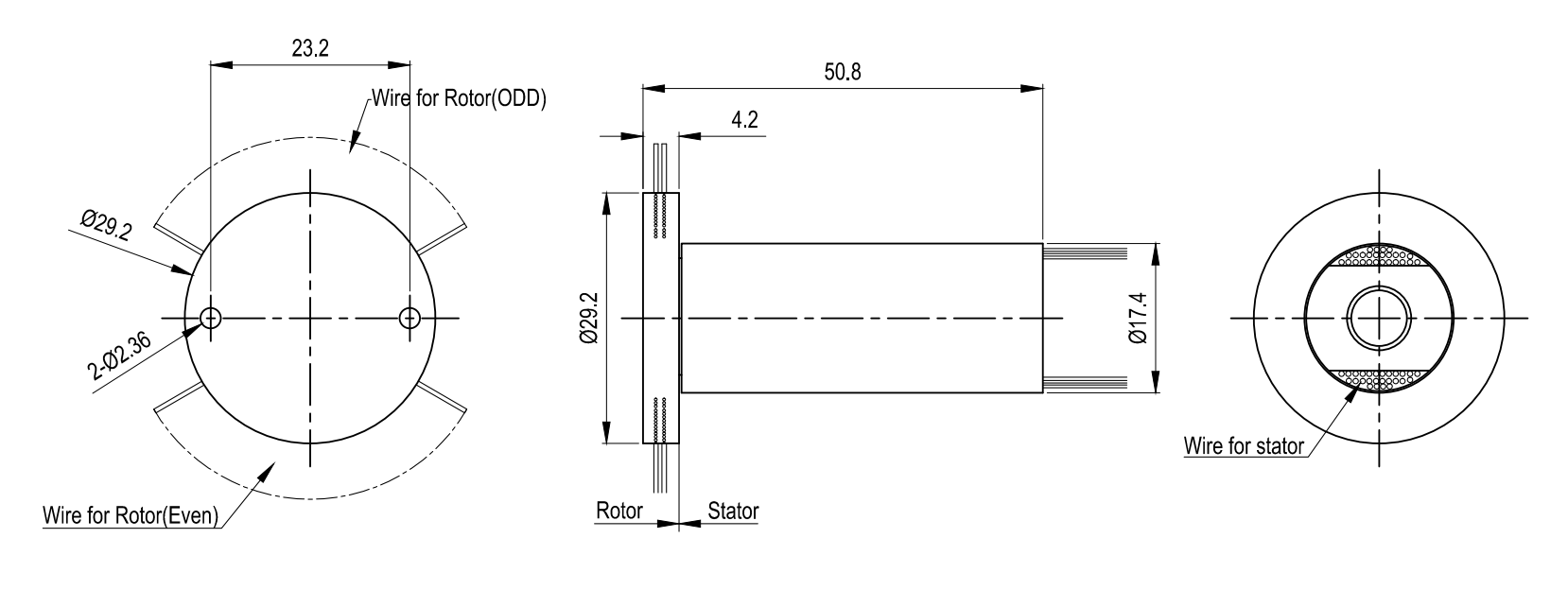

ADSR-JC-68 Dimensions
